Product Specifications
Connector Type:
RJ45 to RJ45
Number of Cores:
8 pin
Cable Specification:
4*2*26AWG
Signal Category:
CAT6A
Applicable Bus Protocol:
EtherNet/IP EtherCAT
Insulation Resistance:
≥100 MΩ
Contact Resistance:
≤5mΩ
Rated Voltage:
60 V DC
Shielded:
Shielded Type
Termination:
Solder
Ambient Temperature:
-25~+85℃
Protection Rating:
IP67(M12)
Front View of Contacts
Wiring Diagram
RJ45-RJ45 1-1 : WH OG(TD+) White/Orange
RJ45-RJ45 2-2 : OG Orange
RJ45-RJ45 3-3 : WH/GN White/Green
RJ45-RJ45 4-4 : BU Blue
RJ45-RJ45 5-5 : WH/BU White/Blue
RJ45-RJ45 6-6 : GN Green
RJ45-RJ45 7-7 : WH/BN White/Brown
RJ45-RJ45 8-8 : BN Brown
Optional Cable Materials
Fixed Mount
Moving Mount
Drag Chain
Optional Cable Colors
Cyan
Custom
Dimensions

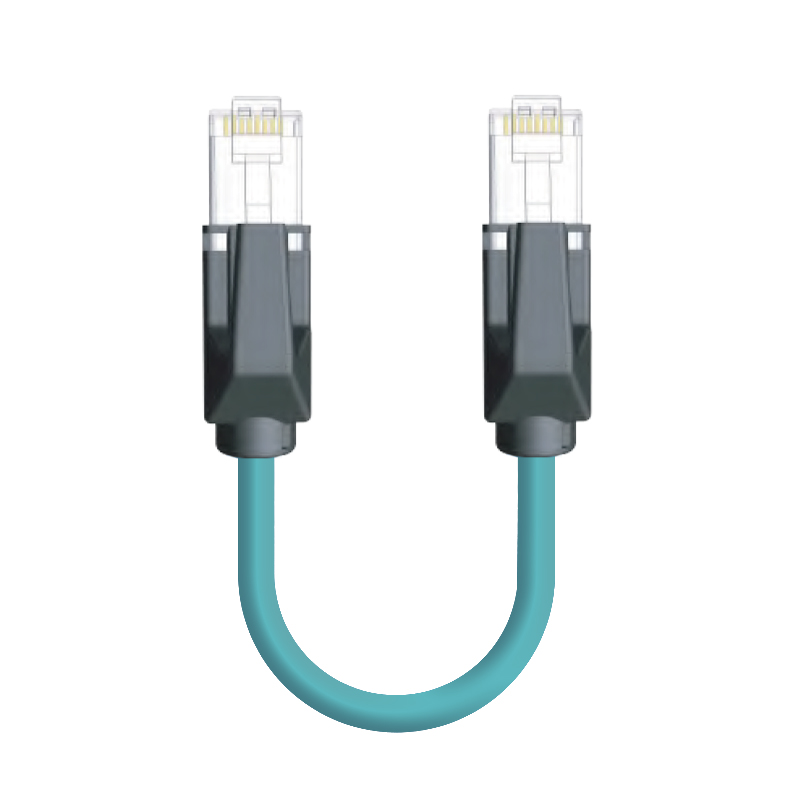

Double-Ended MoldedOne RJ45 to One RJ45

Double-Ended MoldedOne RJ45 to One RJ45

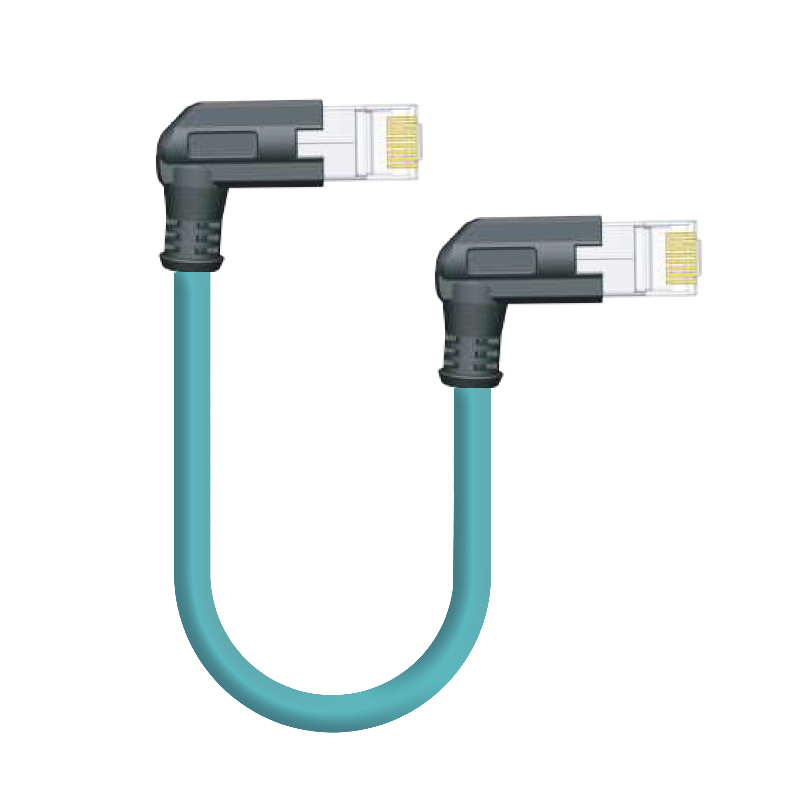

Double-Ended MoldedOne Elbow RJ45 to One Elbow RJ4

Double-Ended MoldedOne Elbow RJ45 to One Elbow RJ45

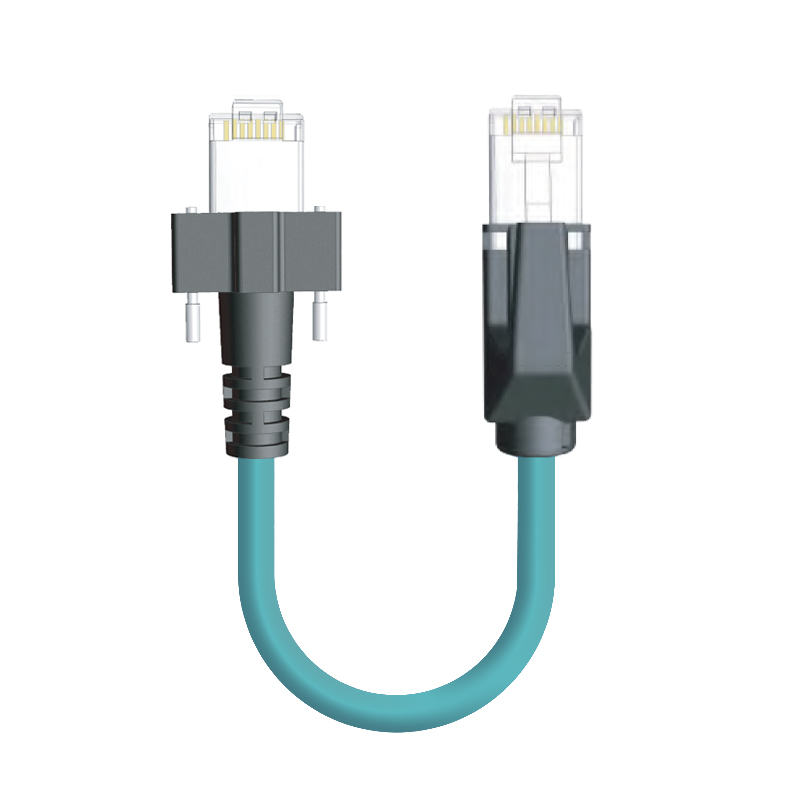

Double-Ended MoldedOne Panel-Mount RJ45 to One RJ4

Double-Ended MoldedOne Panel-Mount RJ45 to One RJ45
