RJ45W 8-RJ45W 8-721/5 M RJ45toRJ45-EtherNet/IP & EtherCATBus ProtocolMolded Cable Fixed Mount8PinDouble EndedRJ45ElbowtoRJ45Elbow，CyanPVC(PVC),Length5M
Product Model：
RJ45W 8-RJ45W 8-721/5 M
Order No.：
789385
Gender：
Double EndedRJ45ElbowtoRJ45Elbow
Number of Pins：
8Pin
Coding Position:
RJ45-
Cable Material:
PVC-PVC
Length:
5 M
:
Cyan
PDF:

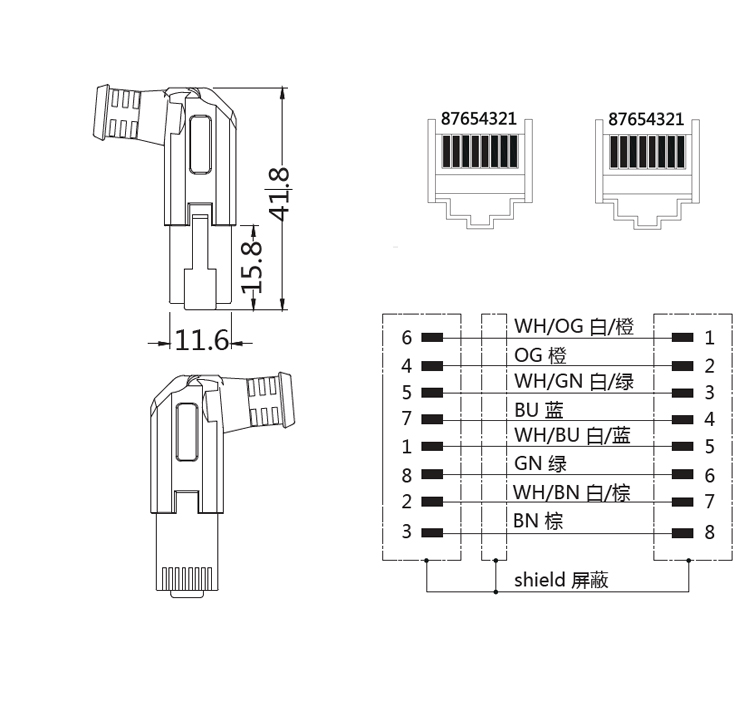

Electrical and Mechanical Properties
Connector Type：
RJ45 to RJ45
Number of Cores：
8 pin
Cable Specification：
4*2*26AWG
Signal Category：
CAT6A
Applicable Bus Protocol：
EtherNet/IP EtherCAT
Insulation Resistance：
≥100 MΩ
Contact Resistance：
≤5mΩ
Rated Voltage：
60 V DC
Shielded：
Shielded Type
Termination：
Solder
Ambient Temperature：
-25~+85℃
Protection Rating：
IP67(M12)
BuscableConnectorPin,Westlian ProfiBUS , CANopen, DeviceNet, EtherCAT, ProfiNet, EtherNet/IP , EtherCAT, ASI, CC-Link Bus ProtocolConnector , M8 , M12 , 7/8'' , RJ45 Connection Method.
● cableYesBus
●
● 360°EMIShielded
● Mount,
● , , ,
●
● ,
●
● Product
●
● LEDLED
