RJ45FL 8-RJ45 8-629/2 M RJ45toRJ45-EtherNet/IP & EtherCATBus ProtocolMolded Cable8PinDouble EndedPanel MountRJ45StraighttoRJ45Straight，CyanTowline(Drag Chain/High Flex Cable),Length2M
Product Model：
RJ45FL 8-RJ45 8-629/2 M
Order No.：
789641
Gender：
Double EndedPanel MountRJ45StraighttoRJ45Straight
Number of Pins：
8Pin
Coding Position:
RJ45-
Cable Material:
Towline-Drag Chain/High Flex Cable
Length:
2 M
:
Cyan
PDF:

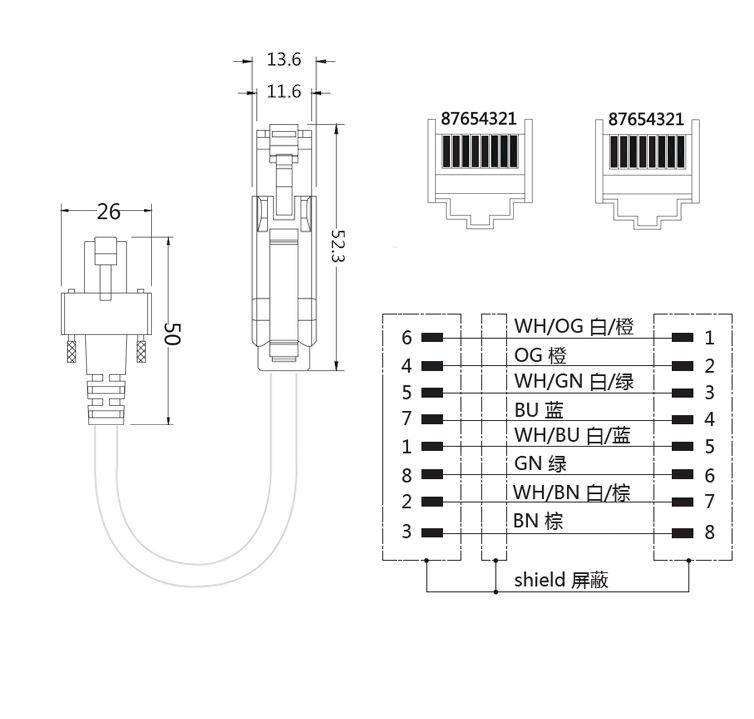

Electrical and Mechanical Properties
Connector Type：
RJ45 to RJ45
Number of Cores：
8 pin
Cable Specification：
4*2*26AWG
Signal Category：
CAT6A
Applicable Bus Protocol：
EtherNet/IP EtherCAT
Insulation Resistance：
≥100 MΩ
Contact Resistance：
≤5mΩ
Rated Voltage：
60 V DC
Shielded：
Shielded Type
Termination：
Solder
Ambient Temperature：
-25~+85℃
Protection Rating：
IP67(M12)
BuscableConnectorPin,Westlian ProfiBUS , CANopen, DeviceNet, EtherCAT, ProfiNet, EtherNet/IP , EtherCAT, ASI, CC-Link Bus ProtocolConnector , M8 , M12 , 7/8'' , RJ45 Connection Method.
● cableYesBus
●
● 360°EMIShielded
● Mount,
● , , ,
●
● ,
●
● Product
●
● LEDLED
