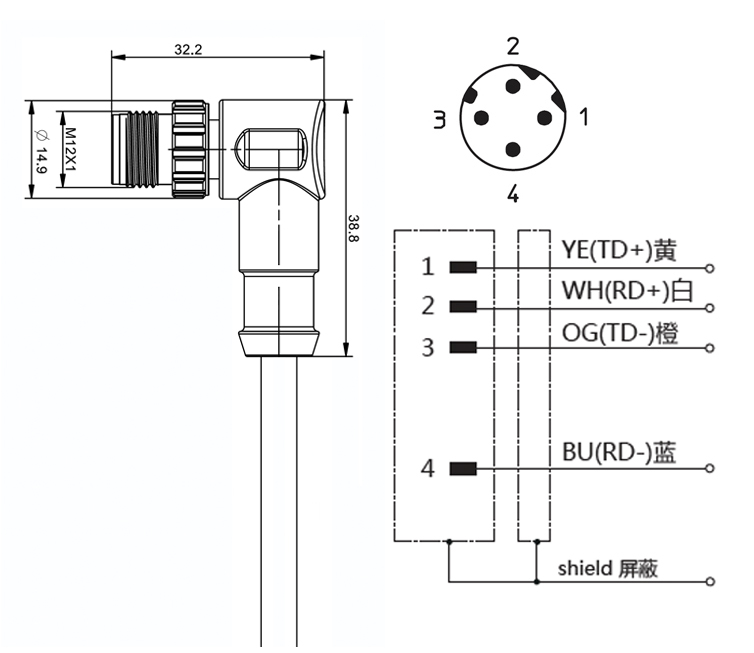

PNSWCD 4-699/2 M M12-D-CODING-ProfiNetBus ProtocolMolded Cable4PinMale Pin Elbow，GreenTowline(Drag Chain/High Flex Cable),Length2M
Product Model：
PNSWCD 4-699/2 M
Order No.：
785273
Gender：
Male Pin Elbow
Number of Pins：
4Pin
Coding Position:
D-
Cable Material:
Towline-Drag Chain/High Flex Cable
Length:
2 M
:
Green
PDF:
Electrical and Mechanical Properties
Applicable Bus Protocol：
ProfiNet
Connector Type：
M12 / RJ45
Number of Cores：
4 pin
Insulation Resistance：
≥100 MΩ
Contact Resistance：
≤5mΩ
Rated Voltage：
60 V DC
Cable Specification：
2*2*22AWG
Shielded：
Shielded Type
Termination：
Solder
Signal Category：
PROFINET CAT5( IEC11081 )100Mbps
Ambient Temperature：
-25~+85℃
Protection Rating：
IP67
BuscableConnectorPin,Westlian ProfiBUS , CANopen, DeviceNet, EtherCAT, ProfiNet, EtherNet/IP , EtherCAT, ASI, CC-Link Bus ProtocolConnector , M8 , M12 , 7/8'' , RJ45 Connection Method.
● cableYesBus
●
● 360°EMIShielded
● Mount,
● , , ,
●
● ,
●
● Product
●
● LEDLED
