LECVK/LED 4-1A-226/2 M Solenoid Valve/Solenoid Valve Molded Cable 1AType 4*0.34mm² BlackPUROvermolded Cable Length2 M
Product Model：
LECVK/LED 4-1A-226/2 M
Order No.：
1567317
Specification：
Solenoid Valve/Solenoid Valve Molded Cable
：
4 Pin
Color:
Translucent Black
Color:
Black
Material:
PUR
Cable Length:
2 M
Download PDF:
Electrical and Mechanical Properties
Product Standard：
DIN EN 61984 / IEC 61984
Product：
：
94V-2 Custom94V-0
：
≤4 mΩ
Protection Rating：
IP67
：
3
Blade Contact Material：
Cu+Sn (Cu+Au)
Housing Material：
TPU
Insert Material：
PA
Seal Material：
NBR
Rated Voltage：
24 V AC/DC
Rated Current：
4A
Temperature Range：
-40℃~+125℃
Specification：
4*0.34mm²

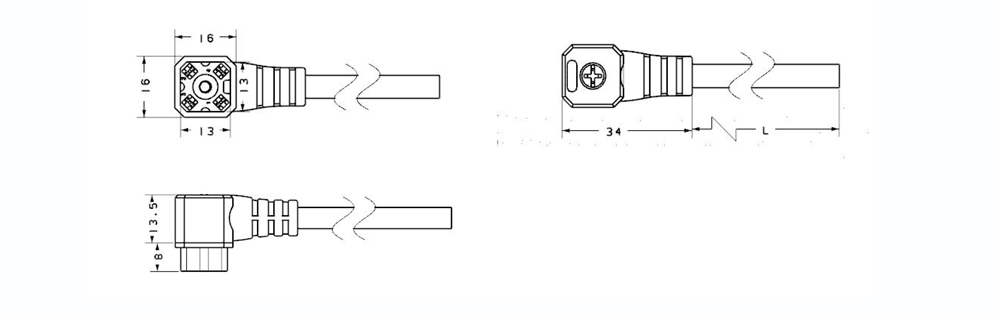

Dimensional Drawing
Product Description
solenoid valvesPlug, , , , “Simple, reliable, rugged, and easy to use”Yes
Connector.
Solenoid ValveConnector, , , “Simple, reliable, rugged, and easy to use”Yes .
TPU, ,
,
IP67 Customcable, cable
Solenoid ValveConnector, , , “Simple, reliable, rugged, and easy to use”Yes .
TPU, ,
,
IP67 Customcable, cable
Application
