LVDM-3PE/01 Gray RectangularSolenoid ValveConnection器Receptacle3+PEGray
Product Model：
LVDM-3PE/01 Gray
Order No.：
1567006
Specification：
Solenoid Valve/SensorReceptacle/Board Style/4*M3Sc
：
3+PE
Color:
Gray
Download PDF:
Electrical and Mechanical Properties
Product Standard：
DIN EN 175 301-803-A
Blade Contact Material：
Cu+Sn
Insert Material：
PA
Seal Material：
NBR
Protection Rating：
IP67
Operating Temperature：
-40℃~+125℃
Rated Voltage：
250 V AC/DC
Rated Current：
16A
Temperature Range：
-40℃~+125℃
Crimping Range：
max. 1.5 mm2
Connection Method：
Solder

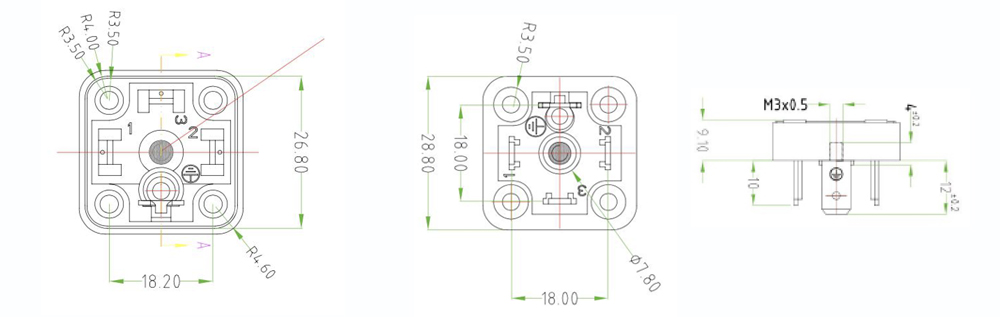

Dimensional Drawing
Product Description
solenoid valvesPlug, , , , “Simple, reliable, rugged, and easy to use”Yes
Connector.
Solenoid ValveConnector, , , “Simple, reliable, rugged, and easy to use”Yes .
TPU, ,
,
IP67 Customcable, cable
Solenoid ValveConnector, , , “Simple, reliable, rugged, and easy to use”Yes .
TPU, ,
,
IP67 Customcable, cable
Application
