Product Specifications
Connector Type:
7/8'' Panel-Mount Flange
PlugKeying:
Straight
Wire Gauge:
1.5mm²
Insulator Material:
NYLON66 + GF
Housing Material:
Metal Housing
Rated Current:
Max.10A
Rated Voltage:
230/400 V AC/DC
Operating Temperature:
-25°C ~ + 80°C
Coupling Nut:
Nickel Plated Copper
Insulation Resistance:
≥100 MΩ
Sealing Method:
Epoxy Resin
Contact Resistance:
≤5mΩ
Mounting Method:
Panel Hole Mount
Protection Rating:
IP67

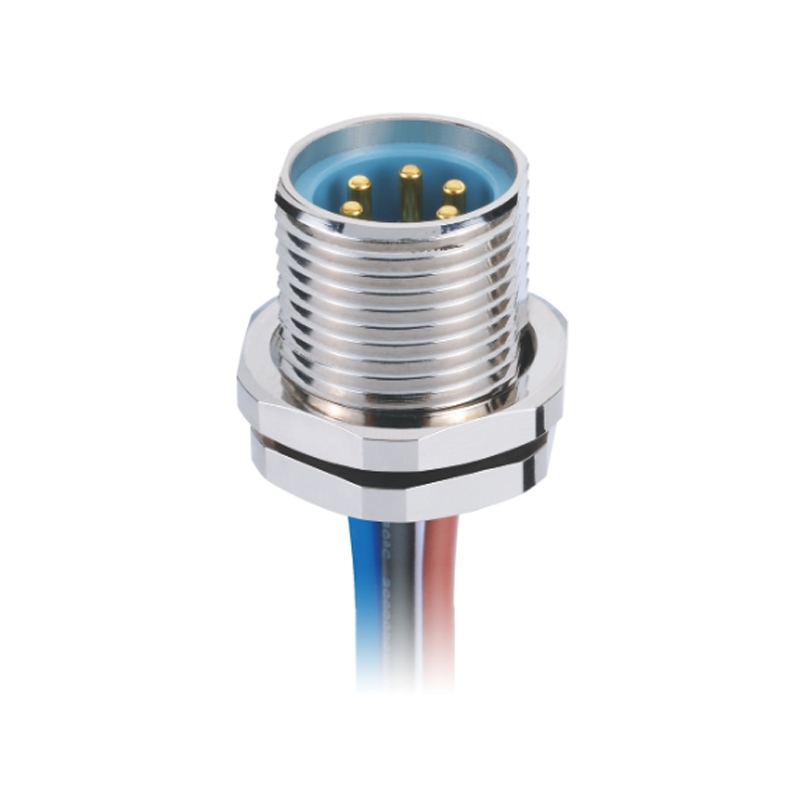

7/8''-MaleFlangeConnector(Front Lock)

Male Flange (Front Lock)

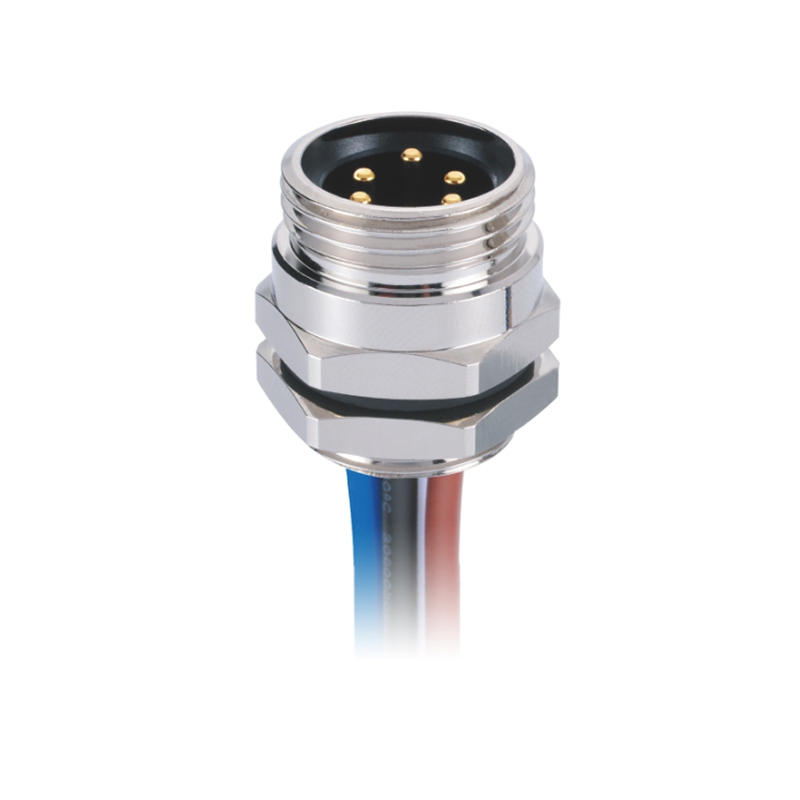

7/8''-MaleFlangeConnector(Rear Lock)

Male Flange (Rear Lock)

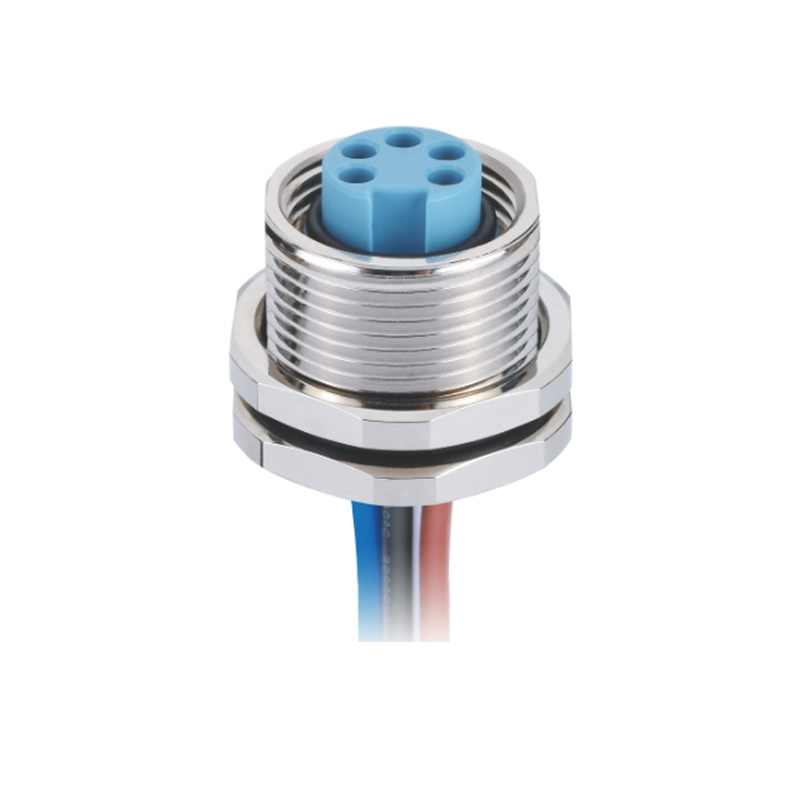

7/8''-FemaleFlangeConnector(Front Lock)

Female Flange (Front Lock)

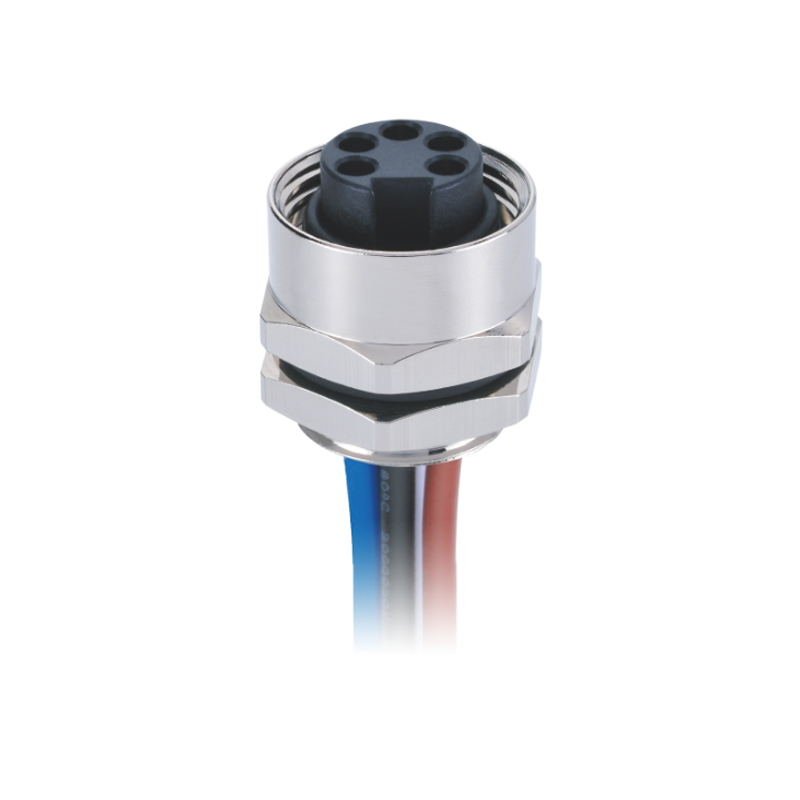

7/8''-FemaleFlangeConnector(Rear Lock)

Female Flange (Rear Lock)
