Product Specifications
Connector Type:
7/8'' 5 pin
Wire Gauge:
Max.1.5mm
Insulator Material:
TPU + GF
Housing Material:
TPU
Rated Current:
Max.10A
Rated Voltage:
230/400 V AC/DC
Contact Material:
Gold Plated Copper
Operating Temperature:
-25°C ~ + 80°C
Coupling Nut:
Nickel Plated Copper
Insulation Resistance:
≥100 MΩ
Sealing Method:
O-Ring
Contact Resistance:
≤5mΩ
Protection Rating:
IP67
Front View of Contacts
Wiring Diagram
1.BK Black
2.BU Blue
3.YE/GN Yellow-Green
4.BN Brown
5.WH White
Optional Cable Materials
PVC
PUR
Drag Chain
Optional Cable Colors
Black
Gray
Yellow
Custom Color

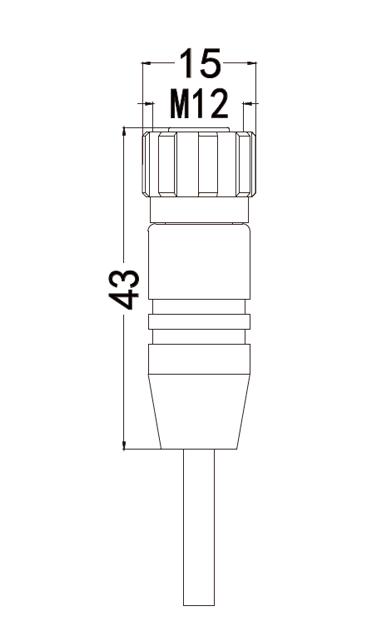

Dimensions

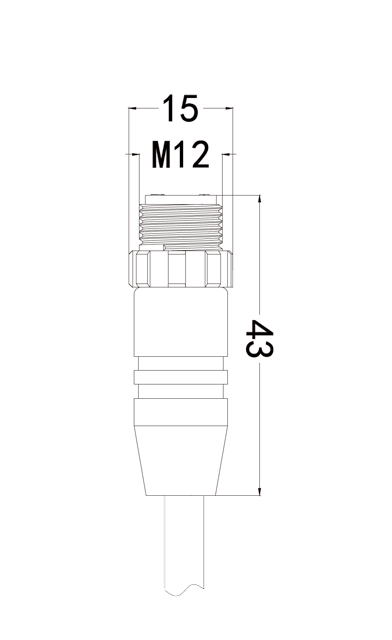

7/8''-MaleStraightMolded Cable

Male Straight

7/8''-FemaleStraightMolded Cable

Female Straight

7/8''-FemaleElbowElbowMolded Cable

Female Elbow

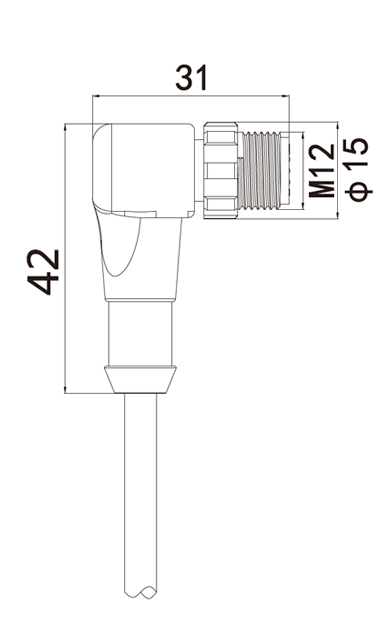

7/8''-MaleElbowMolded Cable

Male Elbow

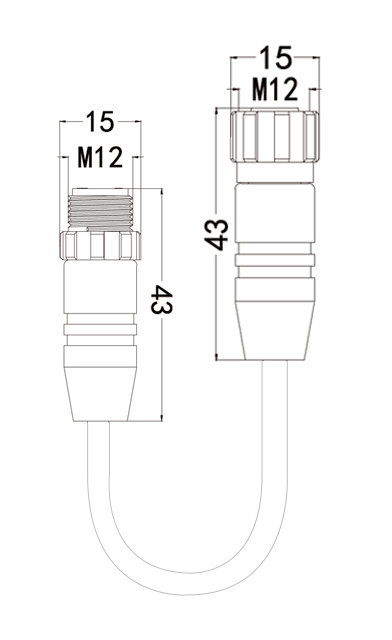

7/8''-MaleStraight to FemaleStraightMolded Cable

Male Straight to Female Straight

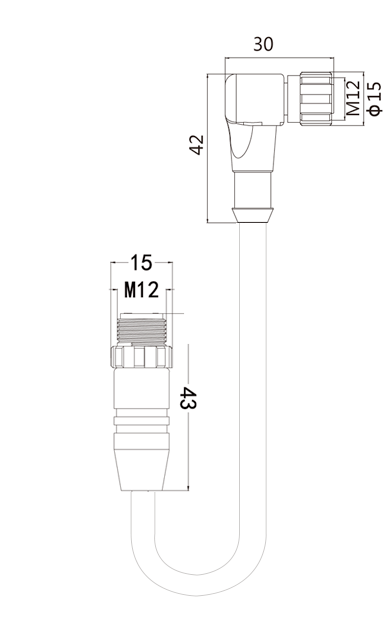

7/8''-Double-Ended Straight Male to FemaleElbowMol

Male Straight to Female Elbow

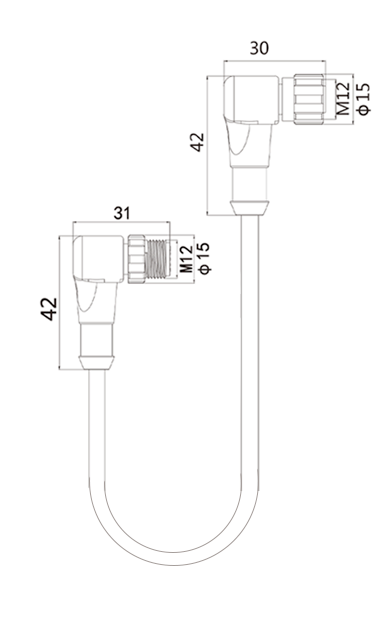

7/8''-MaleElbow to FemaleElbowMolded Cable

Male Elbow to Female Elbow

7/8''-MaleStraight to MaleStraightMolded Cable

Male Straight to Male Straight

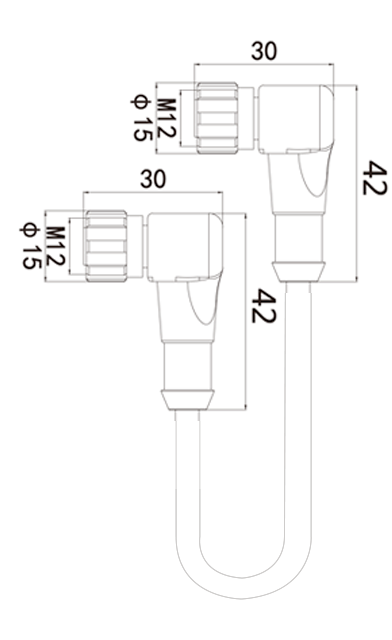

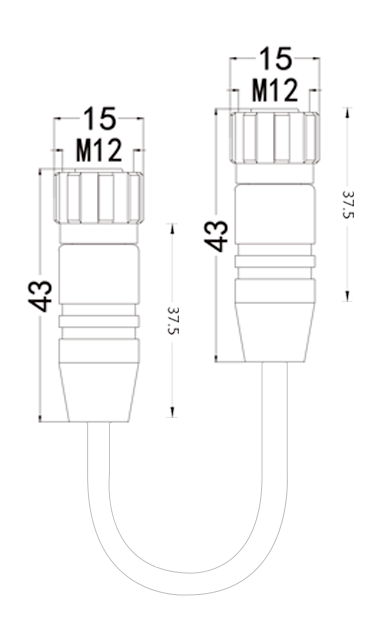

7/8''-FemaleStraight to FemaleStraightMolded Cable

Female Straight to Female Straight

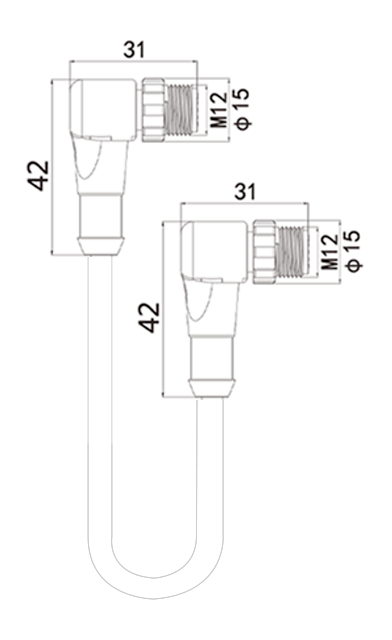

7/8''-MaleElbow to MaleElbow

Male Elbow to Male Elbow
