Product Specifications
Wire Gauge:
24AWG/0.25mm2
Connector Type:
M12-8 Pin
Interface Type:
A-Coding
Rated Current:
2A
Rated Voltage:
30V
Standard:
IEC 61076-2-101
Insulator Material:
TPU + GF
Coupling Nut:
Nickel Plated Copper
Sealing Method:
O-Ring
Protection Rating:
IP67
Housing Material:
TPU
Contact Material:
Gold Plated Copper
Operating Temperature:
-25°C ~ + 85°C
Insulation Resistance:
≥100 MΩ
Contact Resistance:
≤5mΩ
Termination:
Solder
Front View of Contacts
Wiring Diagram
1.WH White
2.BN Brown
3.GN Green
4.YE Yellow
5.GY Gray
6.PK Pink
7.BU Blue
8.RD Red
Shielded Overall Shielded
Optional Cable Materials
PVC Shielded Cable
PUR Shielded Cable
PUR Shielded Cable
Towline Flexible Shielded Cable
Optional Cable Colors
Black
Orange
Gray
Custom Color

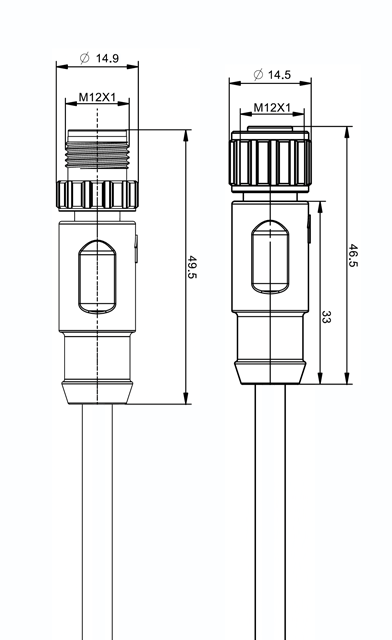

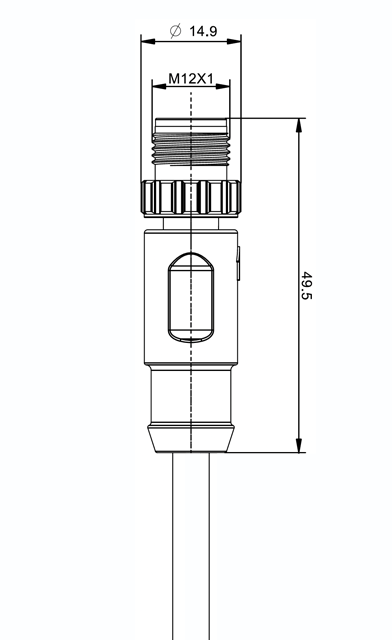

Dimensions
M12-MaleStraightMolded Cable

Male Straight/Shielded

M12-FemaleStraightMolded Cable

Female Straight/Shielded

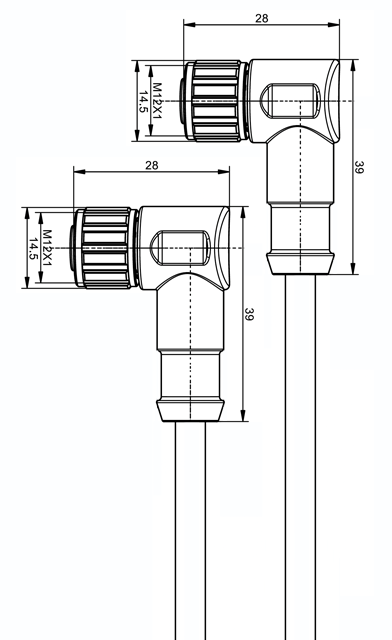

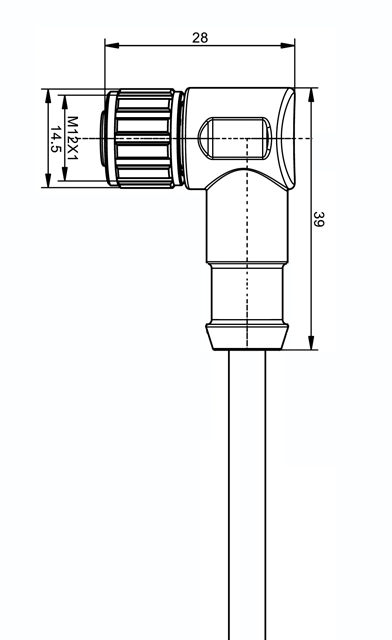

M12-FemaleElbowElbowMolded Cable

Female Elbow/Shielded

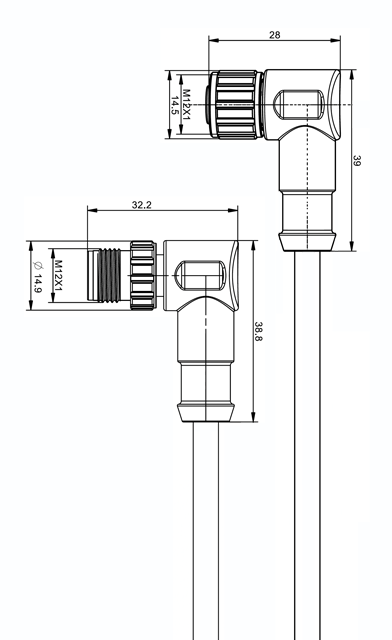

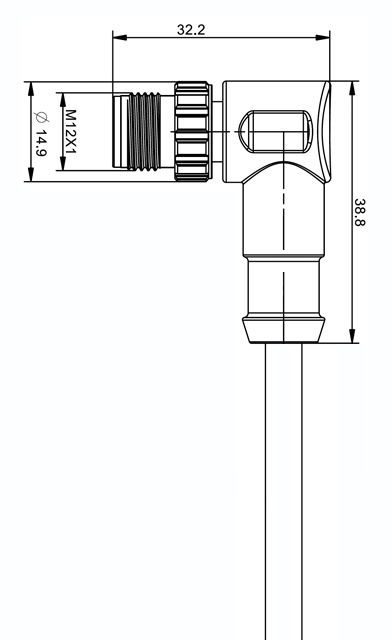

M12-MaleElbowMolded Cable

Male Elbow/Shielded

M12-MaleStraight to FemaleStraightMolded Cable

Male Straight to Female Straight/Shielded

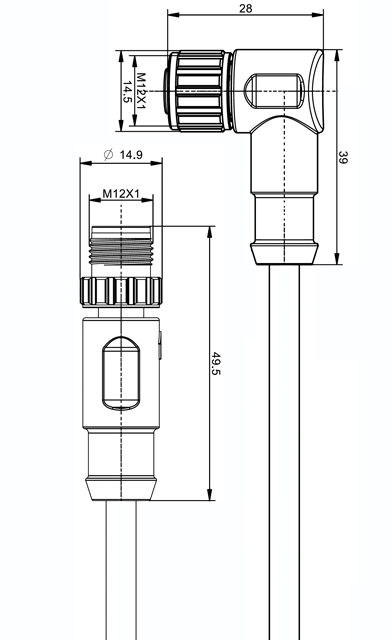

M12-Double-Ended Straight Male to FemaleElbowMolde

One StraightMale to Female Elbow/Shielded

M12-MaleElbow to FemaleElbowMolded Cable

Male Elbow to Female Elbow/Shielded

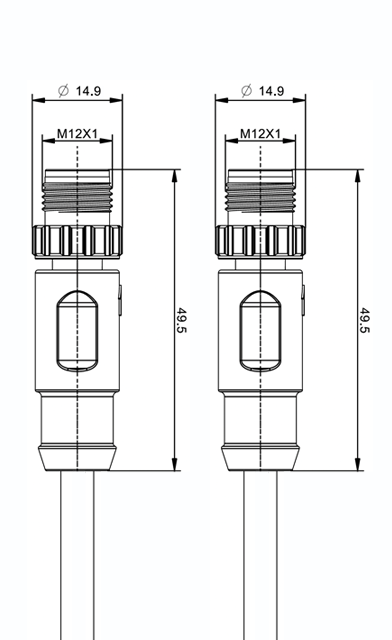

M12-MaleStraight to MaleStraightMolded Cable

Male Straight to Male Straight/Shielded

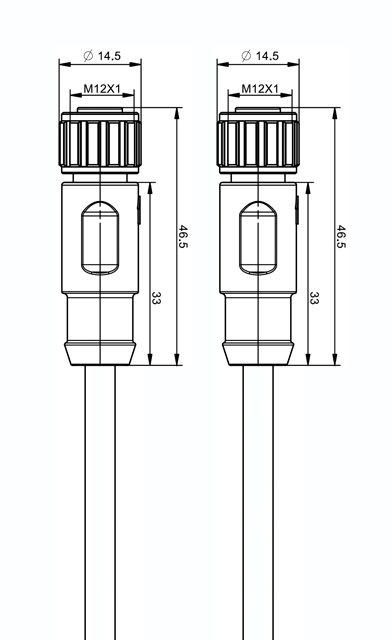

M12-FemaleStraight to FemaleStraightMolded Cable

Female Straight to Female Straight/Shielded

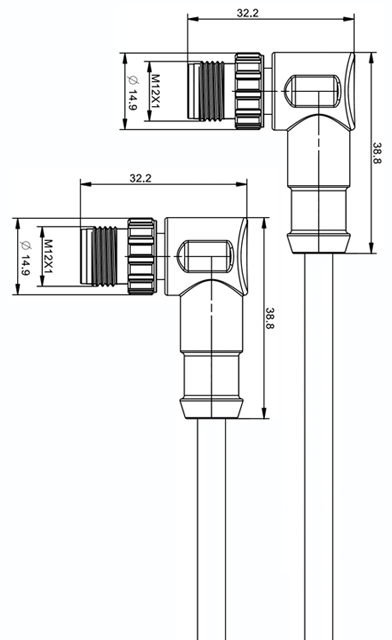

M12-MaleElbow to MaleElbow

Male Elbow to Male Elbow/Shielded
